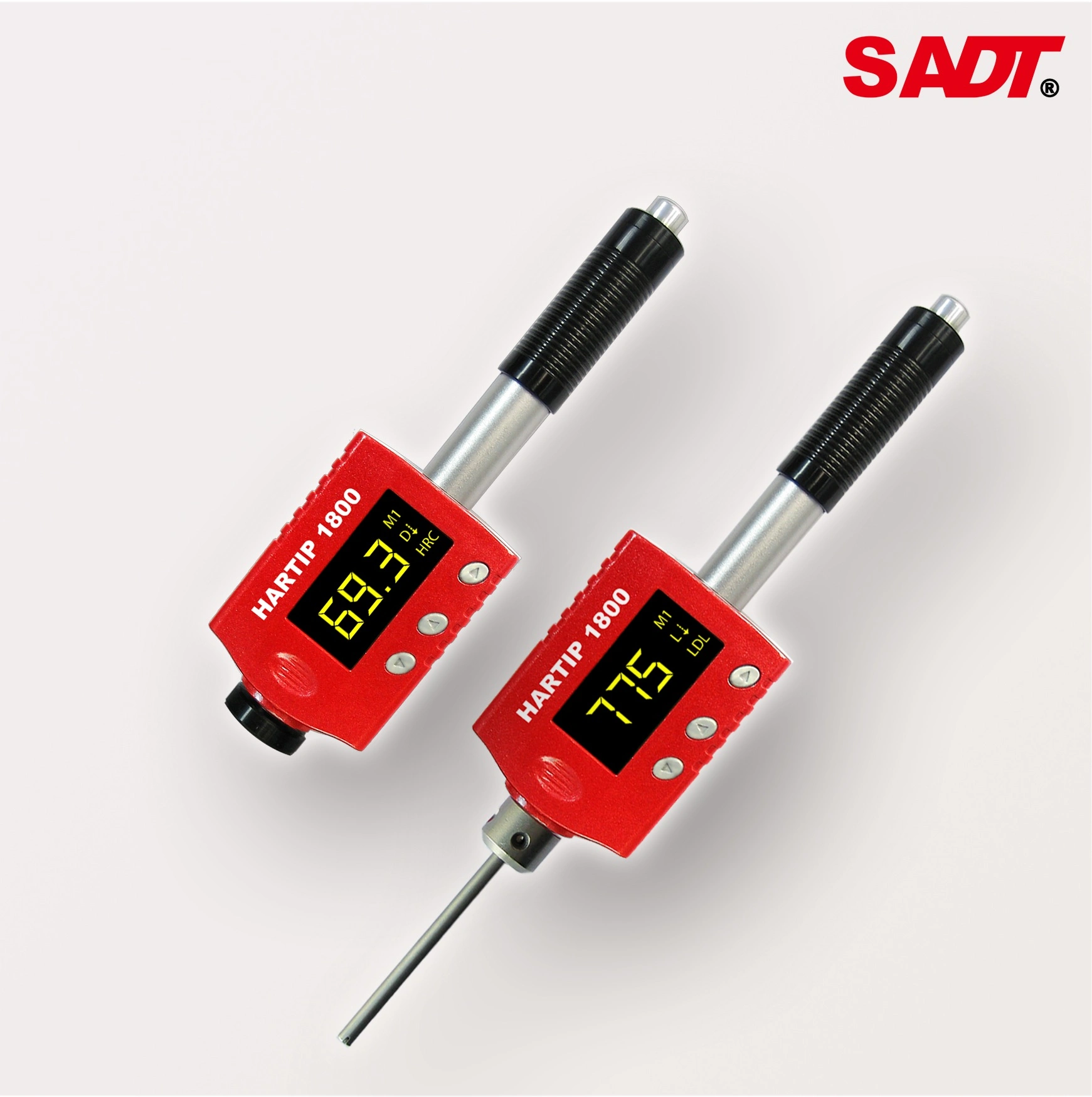

Portable Digital Hardness Tester Manufacturer Hartip1800d/Dl 2-in-1 Probe

Portable Digital Hardness Tester HARTIP1800D/DL two-in-one probe (10 language, +/-2 HLD, auto impact direction)IntroductionHARTIP1800 is an advanced state-of-the-art palm sized metal hardness tester with many new features. Which is light weight, easy operation, integrated design, high contrast display, low operating temperature,

Featured Products


Portable Digital Hardness Tester HARTIP1800D/DL two-in-one probe (10 language, +/-2 HLD, auto impact direction)

Introduction
HARTIP1800 is an advanced state-of-the-art palm sized metal hardness tester with many new features. Which is light weight, easy operation, integrated design, high contrast display, low operating temperature, auto compensating for impact direction and etc. HARTIP 1800 can be widely used for measuring hardness of almost all ferrous and non-ferrous metal materials for scale of Leeb hardness, Rockwell C & B, Brinell, Vickers, Shore and Strength.

HARTIP 1800 has a memory capacity of 3000 data which can be download to computer via USB. The 3.7V Li-ion rechargeable battery inside HARTIP 1800 can be charged via USB from PC or via individual battery charger from mains wall power. With data software for PC, customers can download measuring values from HARTIP 1800 to PC and make process such as save, delete, create testing report and export them to Excel.


HARTIP1800 D&DL is equipped with two-in-one probe. With unique two-in-one probe, HARTIP1800 D&DL can convert between probe D and probe DL simply by changing impact body. It's more economic than buying them individually. It has the same configuration with HARTIP1800 except two-in-one probe.

Adantages:
Integrated design , easy operation ,
Universal impact direction, it does not need to setup different impact direction,  it will be recognized automatically  Digital with high contrast OLED display
 Wide operating environment: -40oC-70oC
High accuracy: +/-2 HL (or 0.3% @HL800)
Dual values( Leeb value and one conversion value) can be displayed at the same screen
 Four display modes: single value shown in big letter or multi-values shown in batch
Auto compensate error for different impact directionHuge memories, data can be recalled easily
Up to 10 kinds of menu language
It can connect to computer by USB or Bluetooth
USB and Bluetooth interface, it can connect micro-printer wirelessly
 Customer re-calibration allowed , 3.7 V Li-ion rechargeable battery , it can be charged by USB or power source  Statistics value can be calculated automatically
With strength conversion value
Power on/off automatically or manually
Packed in rigid carrying case

Specifications

ModelHARTIP 1800 D/DL
PrincipleLeeb hardness measurement
Accuracy+/-4HL(0.5%@HL=800)
Displaydigital with high contrast LED
Display modeNormal or flip
Hardness scaleHL/HRC/HRB/HB/HV/HS/σ b
Measruing rangeHL200-960 / HRC19-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / HRA30-88
Impact deviceD (Internal)
D/DL 2-in-1 (Internal, optional)
Materials11 common metal materials
Memory3, 000 data
Statistics functionAverage / Max. / Min. / value
RecalibrationAllowed by user
InterfaceUSB for data transferring to PC and charging battery
IndicatorLow battery
Power on/offAuto
Power supply3.7v Li-ion rechargeable battery
Working environment-40~+80° C
StandardASTM A956
Dimension (mm)148x44x22
Net weight (g)110
