Thermal Imagining Infrared Camera
Product Description

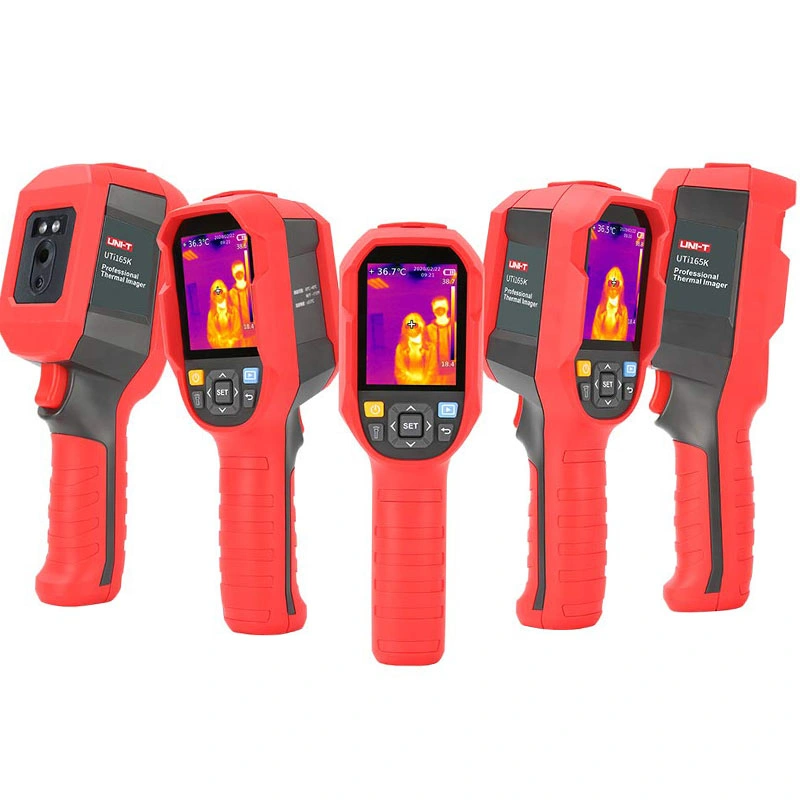

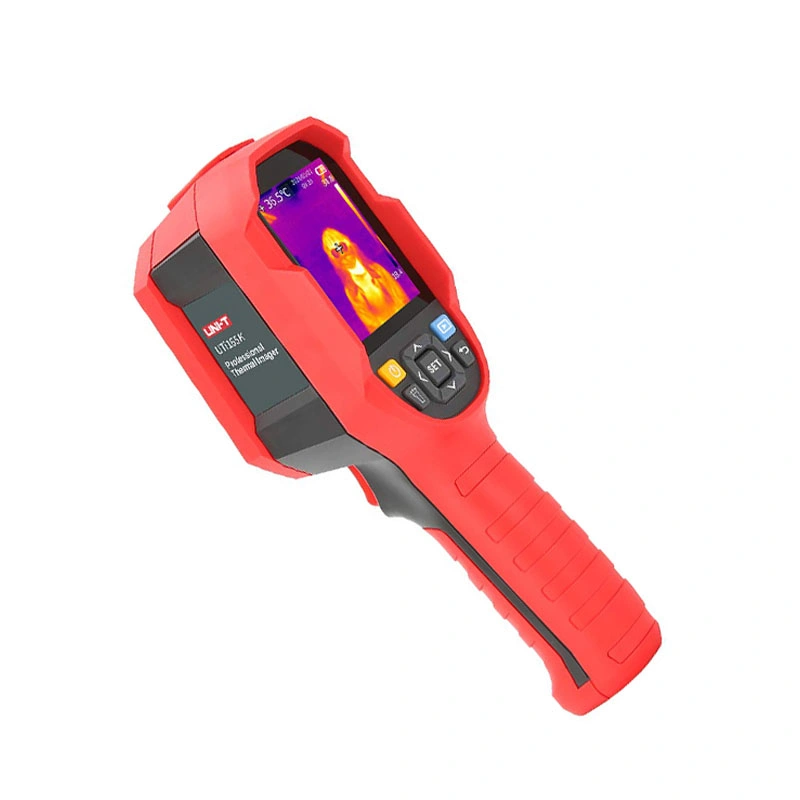

UTi165K is an infrared thermal imager that combines surface temperature measurement and real-time thermal imaging. It is clearly displayed on the screen by the thermal imager. The fuselage has a beautiful design, complete functions, and durability. Built-in high-brightness lighting, using a new generation of sensor modules to ensure excellent infrared resolution and rich swatch modes, can meet the requirements of a variety of imaging shooting modes. Take a picture and store the picture to an SD card, which can be analyzed and generated by PC software to generate a report. And equipped with PC software real-time projection function, high-temperature alarm sound prompts for quick screening.
Widely used in schools, factories, stations, office buildings, residential quarters, etc.
If you have QTY or any need,welcome to contact with us!
| Specifications | |
| Model | UTi165K |
| Sensor | Uncooled focal plane |
| Temperature range | 30C~45C |
| Resolution | 0.1C |
| Accuracy | ±0.5C @1m |
| Minimum measuring distance | 15cm |
| Temperature measurement response time | 500ms (95% of reading) |
| Pixel of thermal imagery | 19200 (160×120) |
| Pixel dimemsions | 12μm |
| Palettes | Iron red, rainbow, white, black, red, lava, high-contrast rainbow |
| Bandwidth of infraed spectroscopy | 8~14μm |
| Field of view (FOV) | 56°(H) × 42°(V) |
| Instantaneous field of view (IFOV) | 6mrad |
| Thermal imaging sensitivity | <50mk |
| Frame rate | <9Hz |
| Temperature display | Center temperature measurement and high temperature tracking (default) |
| Image format | BMP |
| Buttons | 10 buttons: POWER button, Camera button, Return button, Navigation buttons, SET button, SET button, Browsing button, LED lighting button |
| Image modes | Thermal imagery, digital camera (visible light), fushion |
| Temperature measuring point | Besides central point, 3 temperature measuring points can be added |
| Visible light | √ |
| Resolution of visible light | 640×480 |
| Display resolution | 320×240 |
| Mixed setting | 0% (total visible light), 25%, 50%, 75%, 100% (total thermal imagery) |
| PC analysis software (PC) | √ |
| Real-time image transmission | √ (PC software image projection) |
| Data communication | Type-C USB |
| Auto power off | Selectable (5min, 10min, 30min), 30min auto power off (default) |
| Service time | 6 hours |
| Charging time | 5 hours |
| Charging voltage/current | 5V/2A |
| Image storage | Micro SD card |
