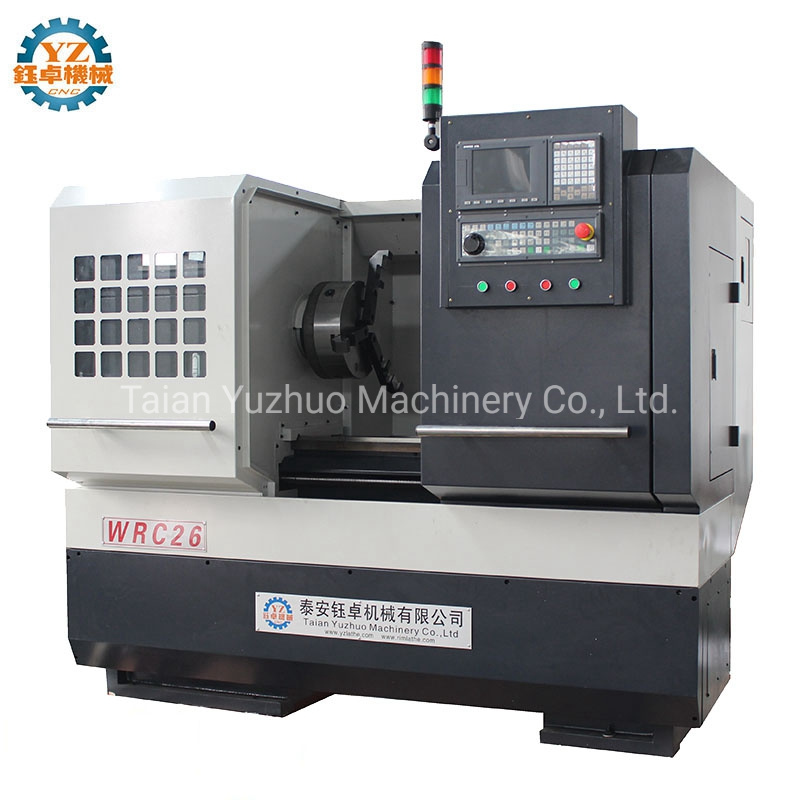

with Digitizer Probe Alloy Wheel Refurbishment CNC Lathe
Alloy Wheel Repair CNC Lathe, Alloy Rim Repair CNC Lathe.
| Model | WRC26 |
| Max. swing over bed | Φ720mm (28') |
| Max. swing over cross slide | Φ540mm |
| Max. size of alloy wheel | 26' |
| Cross slide travel | 350mm |
| Width of the rail | 330mm |
| Length of the rail | 1320mm |
| Size of the 3-jaw chuck | 12' |
| Range of spindle speed | 50~2000rpm |
| Spindle speed control | Automatic |
| Spindle bore | Φ60mm |
| Taper of spindle bore | MT6 |
| Taper of spindle nose | A2-6 |
| Max. size of tool post | 25×25mm |
| Stations of tool carrier | 4 position |
| Min. setting unit of motor | (Z) long 0.001mm (X) cross 0.001mm |
| Moving speed of post | (Z) long 8m/min (X) cross 4m/min |
| Motor power | 7.5kw |
| Machine base | Whole cast iron base |
| Machine size (L*W*H) | 2200*1650*1750mm |
| Net weight | 2600kg |
Standard Configuration:
1- 3-Jaws Chuck(With Special Soft Jaws)
2- Manual Quick Change Toolpost ,four-station turret,
3- Automatic lubrication system,
4- Turning the cooling system.
5- With probing system (TP300 Pioneer Sensing Probe TP300);
6- Diamond Cutter 1 set
7- CNC controller syntec
8- Full Enclose (Security Guard Door)
9- Specific Digital Optimization Software
10- Training Video CD
11- Work Lighting System
Services:
1- After-sales services: Warranty is one year; we would offer the parts (quality problem) free of charge during this period, freight collect.
2- Alloy Wheel Refurbishemnt Advice from REAL WORLD experts in the Diamond Cutting and Alloy Wheel Refurbishment industry
3- Mechanical Support
4- Software Support
5- Comprehensive Training
6- Probe alloy wheel profile
Just PROBE & Diamond CUT !
Once the machine has automatically probed the wheel profile there is no need for you to waste time programming our Alloy Wheel lathe we have taken care of that for you. Just cut the wheel and store the profile on the system. Build up a library of Alloy wheel profiles.We saved you time so you can cut more wheels!
The Machine Work Steps:
1- Probe alloy wheel profile, transformation G code.
2- Diamond cut the wheel.
