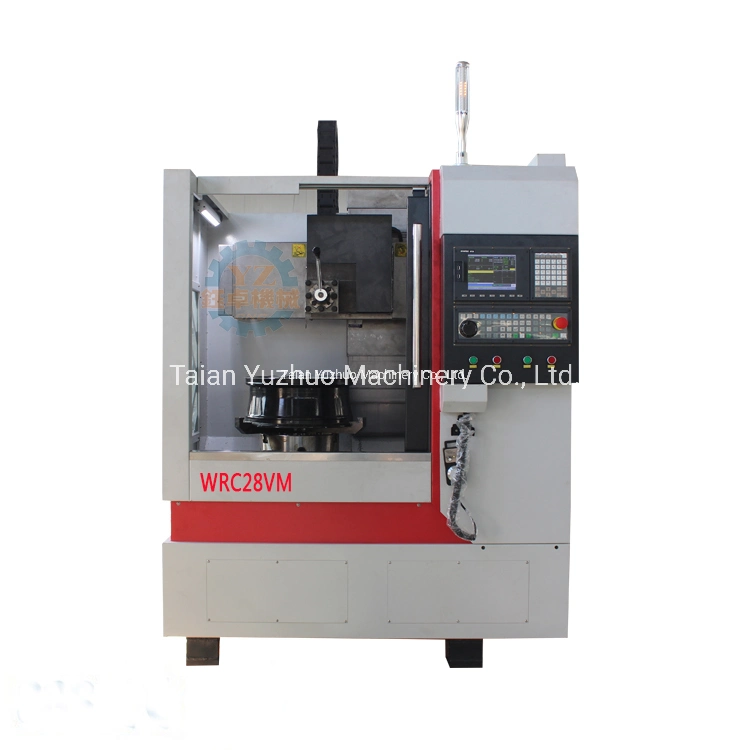

   Vertical Alloy Wheel Repair Lathe CNC With Touch Probe

Vertical Alloy Wheel Repair Lathe CNC with Touch Probe






Product Description

Specification
No.ItemWRC28VM
1Max. swing over bed820mm
2Max. process diameter of wheel780mm
3Max. size of wheel repair30inch
4Chuck diameter320mm
5Spindle speed       50-1500rpm
6Cutting speed 0.1-1000mm/min
7Max. travel X/Z: 410/400mm
8Rapid speed X/Z: 8000mm/min
9Tool post Manual 4 position tool post
10Section of tool post25×25mm
11Feed motor power X/Z: 1.6kw/10Nm
12Linear guide nominal width30mm
13Accuracy 0.015mm
14Repeatability 0.012mm
15Main motor power 7.5kw
16Weight 1300kg
17Dimension1460×1572030mm
18Package size1600x1700x2200mm

Standard Components

1.Diamond Cutter
2.3-Jaws Manual Chuck(With Special Soft Jaws)
3.Diamond Digital Probe Tip
4.Taiwan SYNTEC Controller
5.Manual Quick Change Toolpost,Four-station;
6.Work Lighting System;
7.Automatic Lubrication System;
8.Cooling System;
9.Full Cover (Security Guard Door);
10.Accesssories Tools and Tool Box
11.Wheel Curve Optimize Software

Services:

1-After-sales services: Warranty is one year; we would offer the parts (quality problem) free of charge during this period, freight collect.
2-Alloy Wheel Refurbishemnt Advice from REAL WORLD experts in the Diamond Cutting and Alloy Wheel Refurbishment industry
3-Mechanical Support
4-Software Support
5-Comprehensive Training
6-Probe alloy wheel profile

Just PROBE & Diamond CUT !

Once the machine has automatically probed the wheel profile there is no need for you to waste time programming our Alloy Wheel lathe we have taken care of that for you. Just cut the wheel and store the profile on the system. Build up a library of Alloy wheel profiles.We saved you time so you can cut more wheels!

The machine work steps

1-Probe alloy wheel profile,transformation G code
2-Diamond cut the wheel.

 Vertical Wheel CNC Lathe Machine Photos
Vertical Alloy Wheel Repair Lathe CNC with Touch Probe
Vertical Alloy Wheel Repair Lathe CNC with Touch Probe
Vertical Alloy Wheel Repair Lathe CNC with Touch Probe
