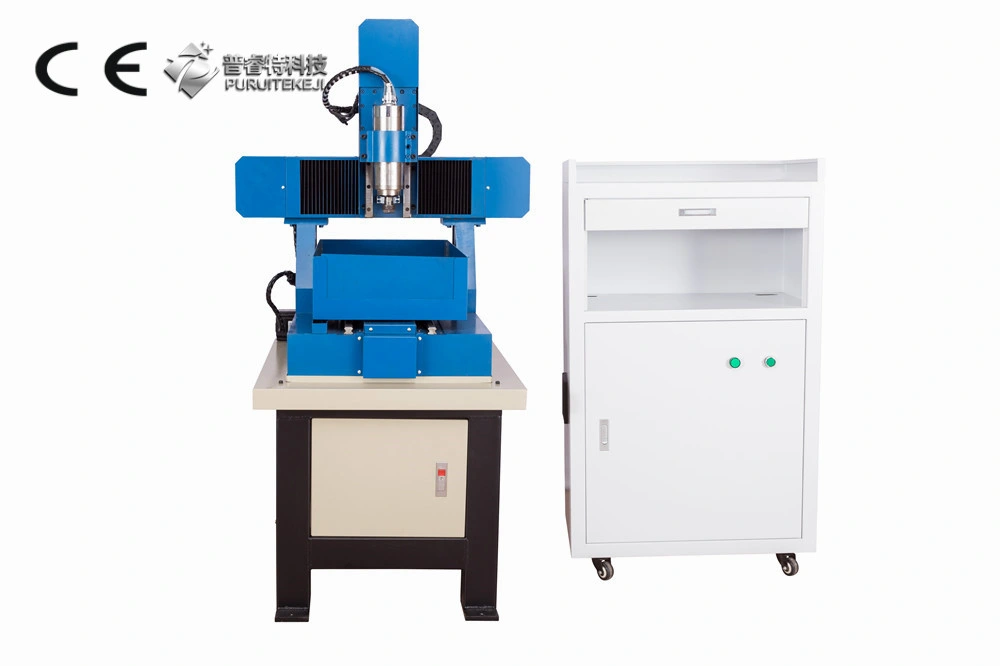

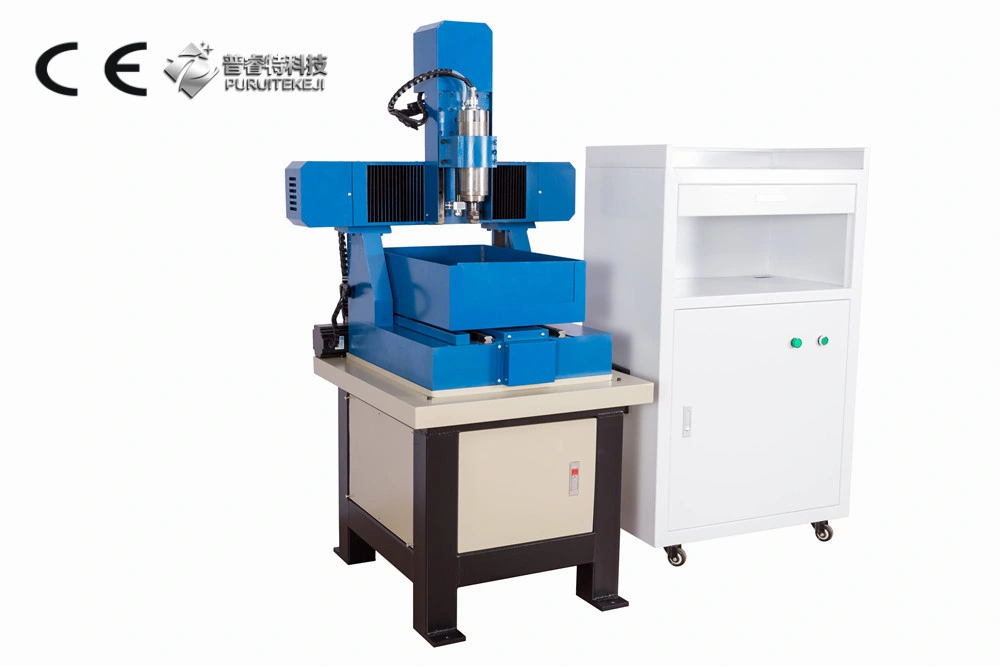

CNC 3030 Carving Machine CNC Machining DIY CNC Mill Engraving Machine for Brass Copper Aluminum
Information:
Feature:
★The water-cooled VFD is available operating for long time,which can reinforced the processing ability of the machine and can be used to engrave on aluminum alloy and hard wood.
★water cooling spindle works more stable and durable.
★ High quality accurate ball Screws drive make the engraving more precision.long life circle.
★ All 3 axis machine can be upgraded to be installed a rotational axis. More Precise Stepping Motor or servo motor;
Applications:
1. Woodworking products processing: MDF, wooden door, screens, art craft wood window fan, solid wood furniture, cabinet products processing, etc.
2. Advertising industry: engraving and cutting on acrylic, foam board, advertising sign, logo sign, advertising decorative products, including 3D cutout letters, dimensional signs, and beautiful print-to-cut designs, LED display screen, etc.
3. Molding industry: engraving on aluminum, copper/brass, plastic, wood material, circuit board, etc.
4. Other industries: The engraver could do shadow-carved, sculpture which widely used in the gift industry; can be used in aluminum cutting industry,such as aluminum, aluminum-plastic plate, aluminum honeycomb panels, aluminum, 3D engraving process, Artificial plate, cutting LED and neon letter , making plastic light box model; also can engrave on acrylic, copper, PVC board, artificial stone, MDF board, and other metal sheet.
Production shows:
Frequently Asked Questions (FAQ):
1. Delivery time
5-7 days delivery time for Standard Machines
15-30 Days for machines that have been customised to client specifications
2. Payment terms
30% deposit payable upon acceptance of quotation
70% balance of invoice due before shipping.
T/T, West Union or Paypal are approved methods of payment.
3. Shipping
Good can be shipped by either of the methods below:
i. FOB or CIF, shipped by our ship partner.
ii. For EX.W, shipped by you or your agents.
4. Machine Operational Instructions
The following options are available to customers:
i. An instructional video demonstrating how to use the machine
ii. A complimentary Free training session hosted at our factory, pending availability.
iii. An Operating Manual ( English) is provided with the machine.
5. Guarantee & After-Sales Service
i. The machine comes with a 12 month guarantee.
ii. . A 24 hour, free technical support service is available via email, fax, MSN, Skype, phone, TradeMessenger.
6. Product Warranty
Replacement parts will be supplied at no cost for the period of the warranty.
Replacement parts are at the customers expense after this expiry of the warranty period. However, we guarantee customer support within 48 hours of being notified of an issue, to support product maintenance.
7. Minimum Order Quantity (MOQ)
We accept single (1) machine orders
8. How to Order
Please send us a description of how you intend on using the machine so that we may suggest customisations to better satisfy your needs.
The Product Ordering steps are listed below:
→ Consultation to determine machine configuration with professional designer
→Order Confirmation
→PI
→30 % payment deposit
→Production
→70 % balance of payment
→Shipping
→After-sales service
Information:
| Item | Description |
| Model | 3030CS-3-15 |
| Outside dimension | 820x870x1460mm(LxWxH) |
| Working platform size | 360x360mm(LxW) |
| Frame Material | Aluminium alloy and metal plate |
| Max. Feeding height | ≤155mmmm(From base of Z axis to platform) |
| X, Y, Z Working Area | 300x300x150mm |
| Sliding unit: | |
| X axi | ø20 High intensity square rail guide |
| Y axis | ø20 High intensity square rail guide |
| Z axis | ø20 High intensity square rail guide |
| Drive unit: | |
| X axis | SFU1605 Ball Screws; |
| Y axis | SFU1605 Ball Screws; |
| Z axis | SFU1605 Ball Screws; |
| Stepping motor | two-phase 3A(Stepping 86 Model, same as nema 34 ) |
| Driving Power for Stepping motor | AC110-220V, 240W; Output DC 24V, 10A |
| Maximum Idle speed | 1500mm/min |
| Working Speed | 50-1500mm/min(different material with different speed settings) |
| Spindle motor | 1500W, ER11 |
| Variable-frequency Drive (VFD) | AC220V, 1500W, 0-400Hz (built-in Control box ) |
| Drive of stepping motor | 0-3.5A adjustable four-axis drive (TB6560AHQ chip, 24V power supply, 2, 4, 8, 16 Subdivision can be set, Factory setting: 8 subdivided |
| Repositioning precision | ≤0.05mm |
| Speed | 0-24000rpm |
| Cooling method | Water cooling, come with water pump |
| Spindle precision | Radial runout≤0.03mm |
| Carving command | G code/TAB file/nc/TAB /NCC/file |
| Protection | Emergency stop button |
| Communication interface | USB PORT/Parallel port to computer |
| Input Volts | AC 220V(110V is optional) |
| Software Environment | XP 32 bite or Windows 7 32 bite |
| Gross weight | 170kg |
