CHINA GOODA-VM-1825NC Specifications
VM-1825NC Specifications
No.ItemDescriptionSpecifications
1ModelCNC gantry milling machine VM-1825NC
2Cutting capacityMax. machining length mm2500
Max. machining width mm1800
Max. processing height mm500
3WorktableWorktable size mm1400*2500

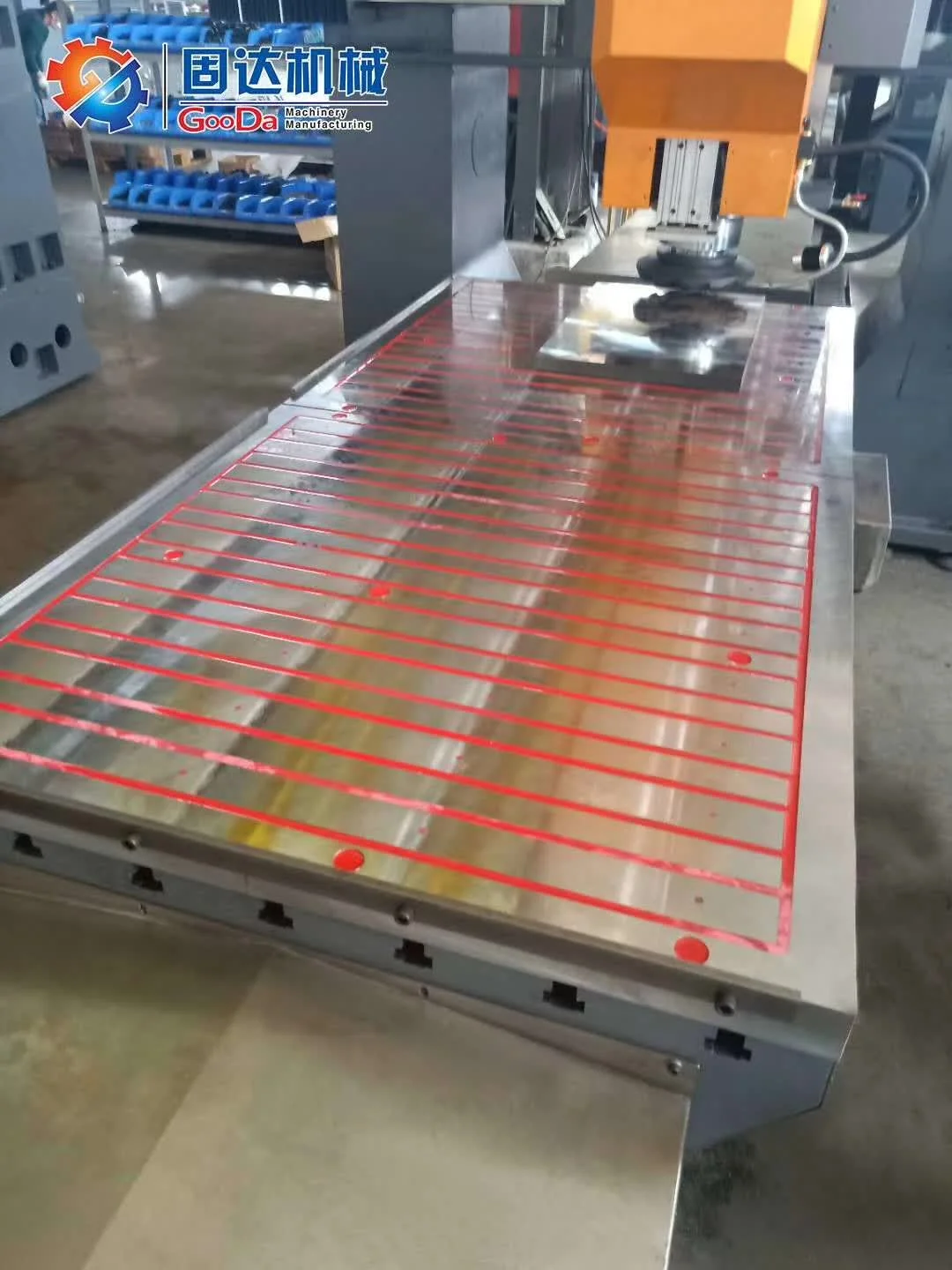

Magnetic table size mm1500*2400
Max loading weight kg6000
Table T groove specification mm22*150*7
4Gear type milling headSpindle power kw15
Spindle taperBT50(7:24)
Speed of mainshaft C/S50-500
Cutting diameter mm250
5Z-axis balance deviceNitrogen counterweight2PCS
6Chip removal deviceAutomatic chip removal deviceDouble sides
7Travelling speedX axis moving speed  mm/min0-8000
Y axis moving speed  mm/min0-8000
Z axis moving speed  mm/min0-8000
8Motor powerX,Y,Z axis motor  kw3,3,3
Chip-removal motor  kw1/2
9Sheet metal coverU protectHalf cover
10Dimension & weightNet width of inside mm1800
Machine area mm6800*3700*3400
Machine weight kg18000
Features and applications:
  1. High rigidity and high precision mechanism design
    High quality HT300 cast iron is purchased for main structural parts, with stable structure and permanent quality assurance. The casting is analyzed and calculated by the finite element analysis method, with reasonable structural strength and scientific reinforcement rib arrangement, providing high mechanical rigidity. The base is wide and solid, the column is a box structure, the saddle is widened and lengthened, and the design structure of full support for heavy load is solid, which can ensure the heavy load capacity during processing. The spindle is reinforced with ribs, and the contact length ratio between the spindle head and the column is appropriate to provide stable support for the spindle.
  2.  High speed and high precision transmission system.
    The X / Y / Z three-axis adopts linear slide rail, which has the characteristics of high rigidity, low noise and bottom friction coefficient. It can be used for fast displacement and obtaining the best circular accuracy. Fast displacement X / Y axis 30m / min. Z axis 24m / min.

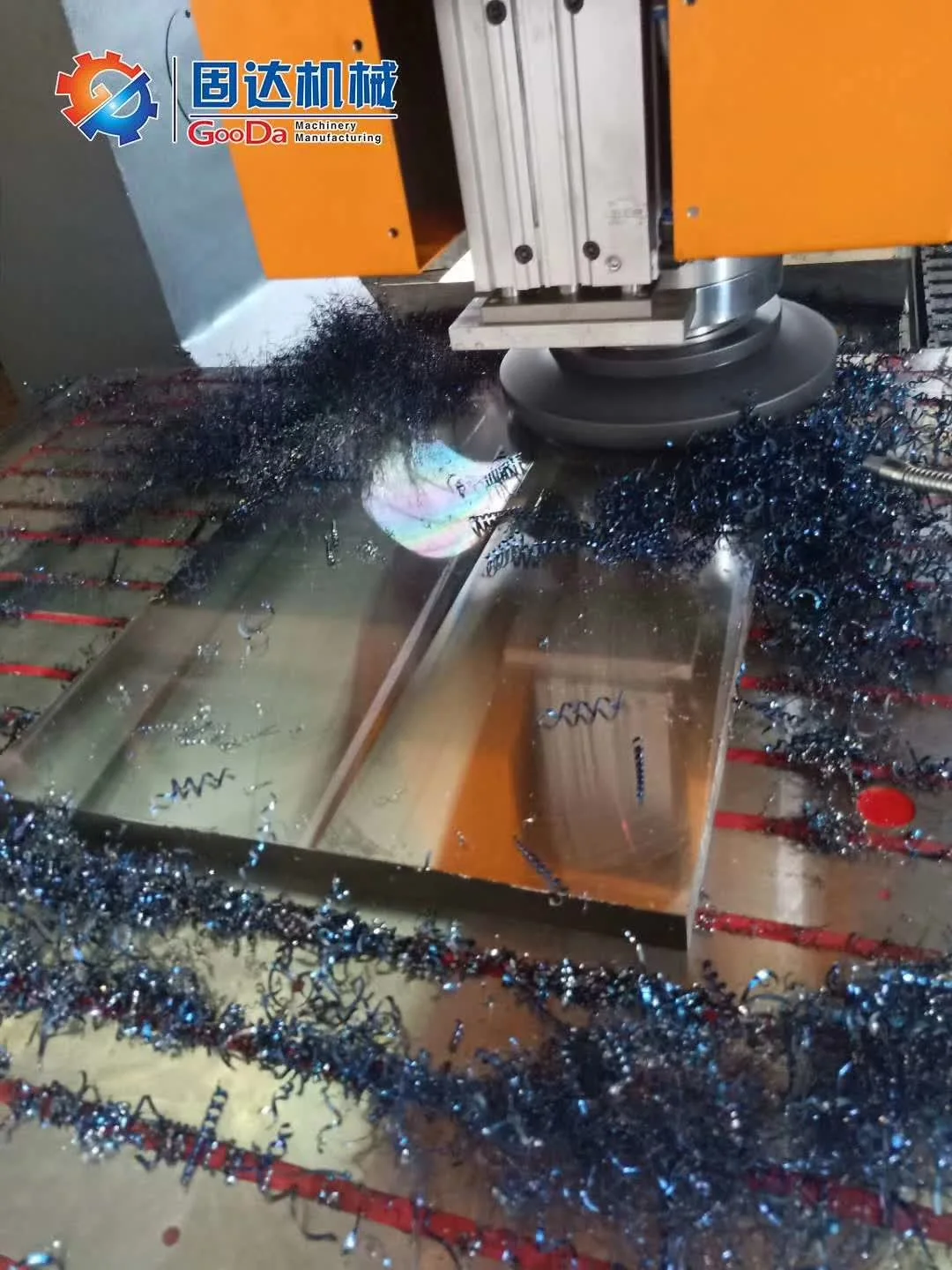

Mainly used for pre-squared steel plate and non-ferrous metal materials for flat surface
FAQ:
 1. What is your minimum order quantity and warranty?
     MOQ is one set, and warranty is one year.
2.What CNC system do you use?
    FANUC, SIEMENS, MISTSUBISHI etc. It depends on your choice.
3.When is the delivery time?
    Conventional Machines,We will delivery then within 30-45 working days after received your
     deposit,if some  special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
    Packing:  PE bag cover inside+ Plywood box + Steel beam frame.
5.How can I choose the most suitable machines ?
   Please let us know your machining demand or machine size ,we can choose the best model
   for you , or you can choose the exact model by yourself. You can also send us the products
   drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
     FOB, CFR,CIF or others terms are all acceptable.
7. What is your payment terms ?
    Payment Terms :  T/T 30% advance ,  70% before shipment.
Company Profile

We are the first manufacturer to produce the high-end CNC machine in China, who focusing on developing and supplying the high efficiency, high accuracy, and high quality of CNC duplex milling machines and exchange-pallet vertical CNC milling machine.

Our aspiration is to be flexible in implementing customer requirements, guarantee the high reliability of the milling machine, ensure that spare parts are available at short notice and facilitate the prompt availability of service engineers.


CNC Vertical Milling Machine-Fix-Beam Bridge Type Milling Machine-CNC Large Bridge Milling Machine
CNC Vertical Milling Machine-Fix-Beam Bridge Type Milling Machine-CNC Large Bridge Milling Machine

Advantage
CNC Vertical Milling Machine-Fix-Beam Bridge Type Milling Machine-CNC Large Bridge Milling Machine
Certification
CNC Vertical Milling Machine-Fix-Beam Bridge Type Milling Machine-CNC Large Bridge Milling Machine

Cooperative Partner
CNC Vertical Milling Machine-Fix-Beam Bridge Type Milling Machine-CNC Large Bridge Milling Machine

Maintenance and repair

The benefits of GOODA maintenance contract (After sales 3 years):

  • Basic requirement in a certified QS system
  • Guarantee for the accuracy of the measuring and test results
  • Calibration, maintenance and, if necessary, repair with just one visit
  • Fixed prices with a clear breakdown of costs
  • Preventive maintenance helps you avoid expensive faults and ensures a high level of quality that lasts

The maintenance contract includes:

  • Travelling time and expenses for our technician
  • Maintenance and calibration work
  • Small items required for carrying out the specified maintenance work
  • Calibration with a corresponding maintenance and test report, allowing the results to be used to demonstrate compliance with national standards
