Stainless Steel Diesel Tank Water Sensor Probe Liquid Level Sensor for Hydraulic Monitoring 0-10V

stainless steel diesel tanks water sensor probe level sensor for hydraulic monitoring 0-10vHDL604 anticorrosive liquid level transmitter adopts PTFE cable, which can measure strong acid and alkali liquids. The front-end protective cap protects the sensor diaphragm. It can also make the liquid contact diaphragm smoothly. The anti

Featured Products

stainless steel diesel tanks water sensor probe level sensor for hydraulic monitoring 0-10v

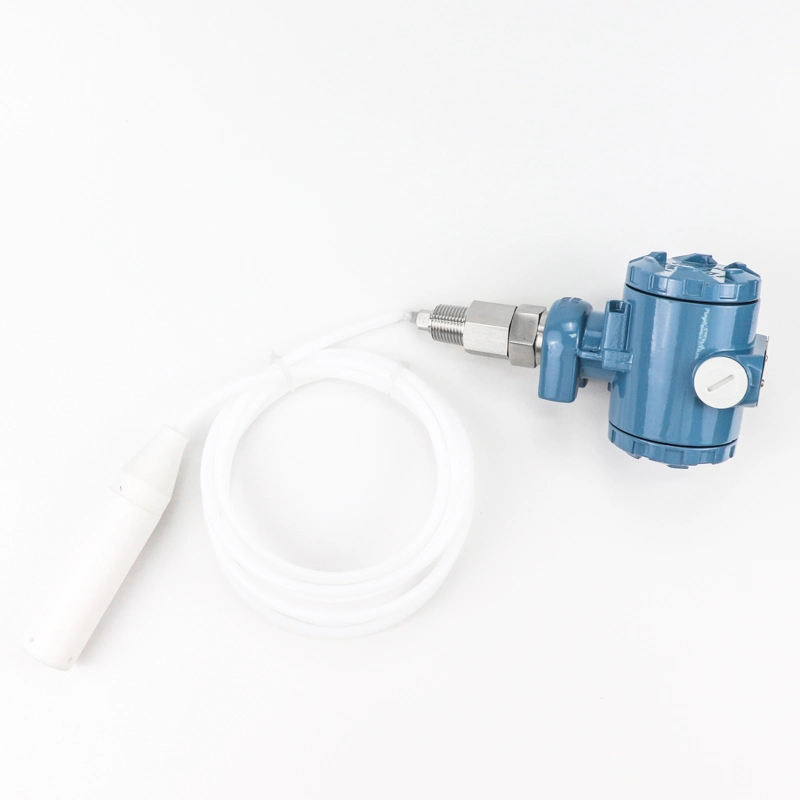

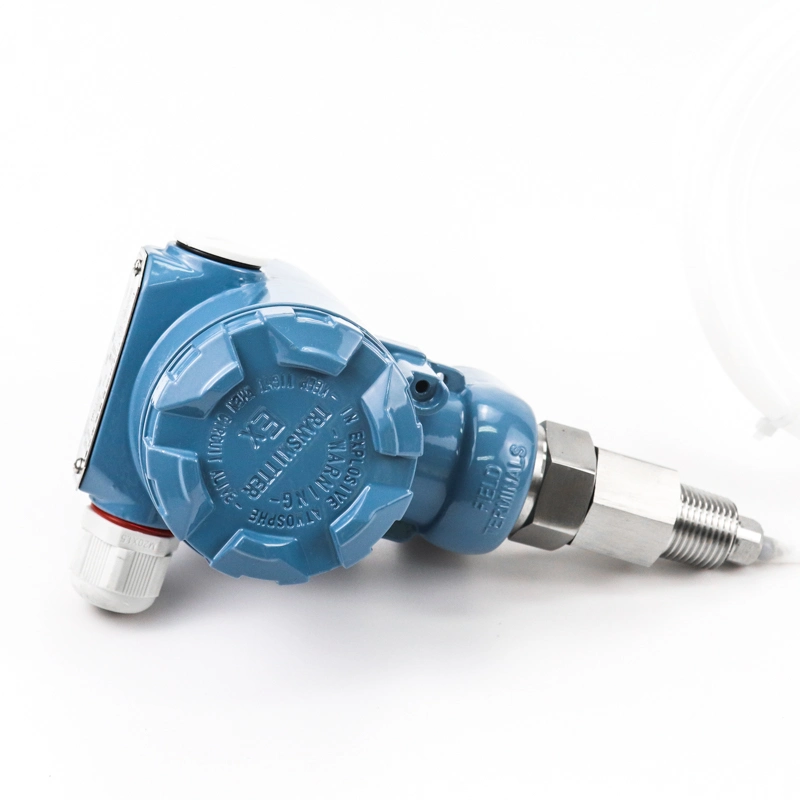

HDL604 anticorrosive liquid level transmitter adopts PTFE cable, which can measure strong acid and alkali liquids. The front-end protective cap protects the sensor diaphragm. It can also make the liquid contact diaphragm smoothly. The anticorrosive wire is sealed with the outer shell. The ventilation pipe is connected with the outside inside of the cable, and the inner structure is designed to prevent condensation. Built-in micro signal processing circuit can be used for remote transmission. It has good stability and reliability.

HDL604 series are widely used in liquid level measurement and control in environmental protection, water conservancy, frequency conversion water supply, industrial process control, chemical industry and other fields.
Measured liquids: mainly measuring hydrochloric acid, sulfuric acid, nitric acid, hydrofluoric acid, sodium hydroxide, hydrogen peroxide and other highly corrosive liquids, or chemical, electroplating wastewater.

Technical Parameters
ModelHDL604
Power supply5VDC,12-36VDC(standard)
Output single4~20mA,1~5V,0~10V,RS485
Measuring range0.5... 500 metre
Compensation temperature-10~70ºC
Medium temperature-40~80ºC
Environment temperature-40~85ºC
Measuring mediaWater,Oil, acid and base
Accuracy0.1%F.S,0.25%F.S(standard)
Zero tempe drift±0.03%F.S/ºC
Sensitivity temperature drift±0.03%F.S/ºC
material316L core& cable
Overload200%F.S
Long-term stability≤0.2%F.S/year
Inherent frequency5kHz~650kHz
Protection gradeIP68
