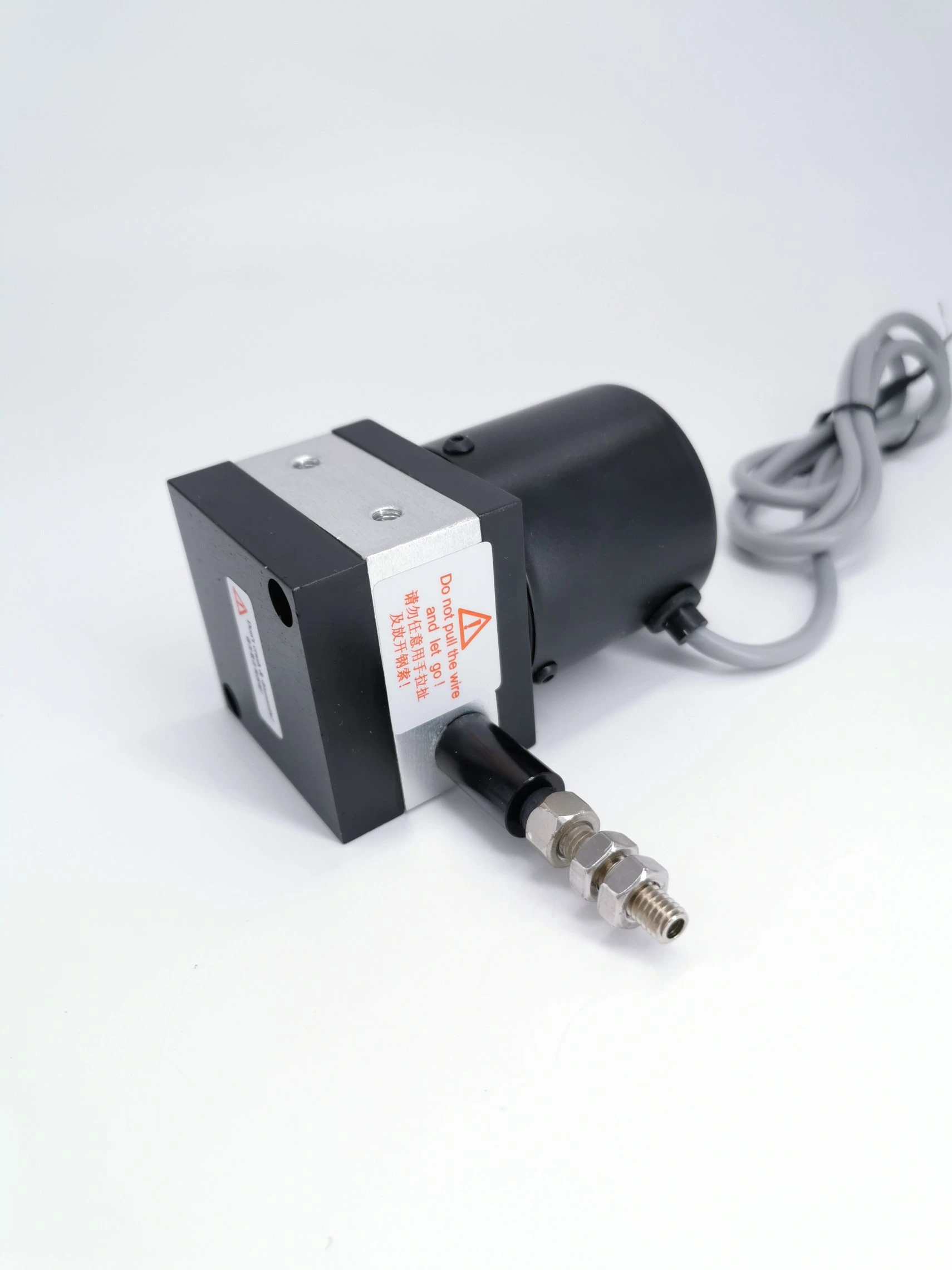

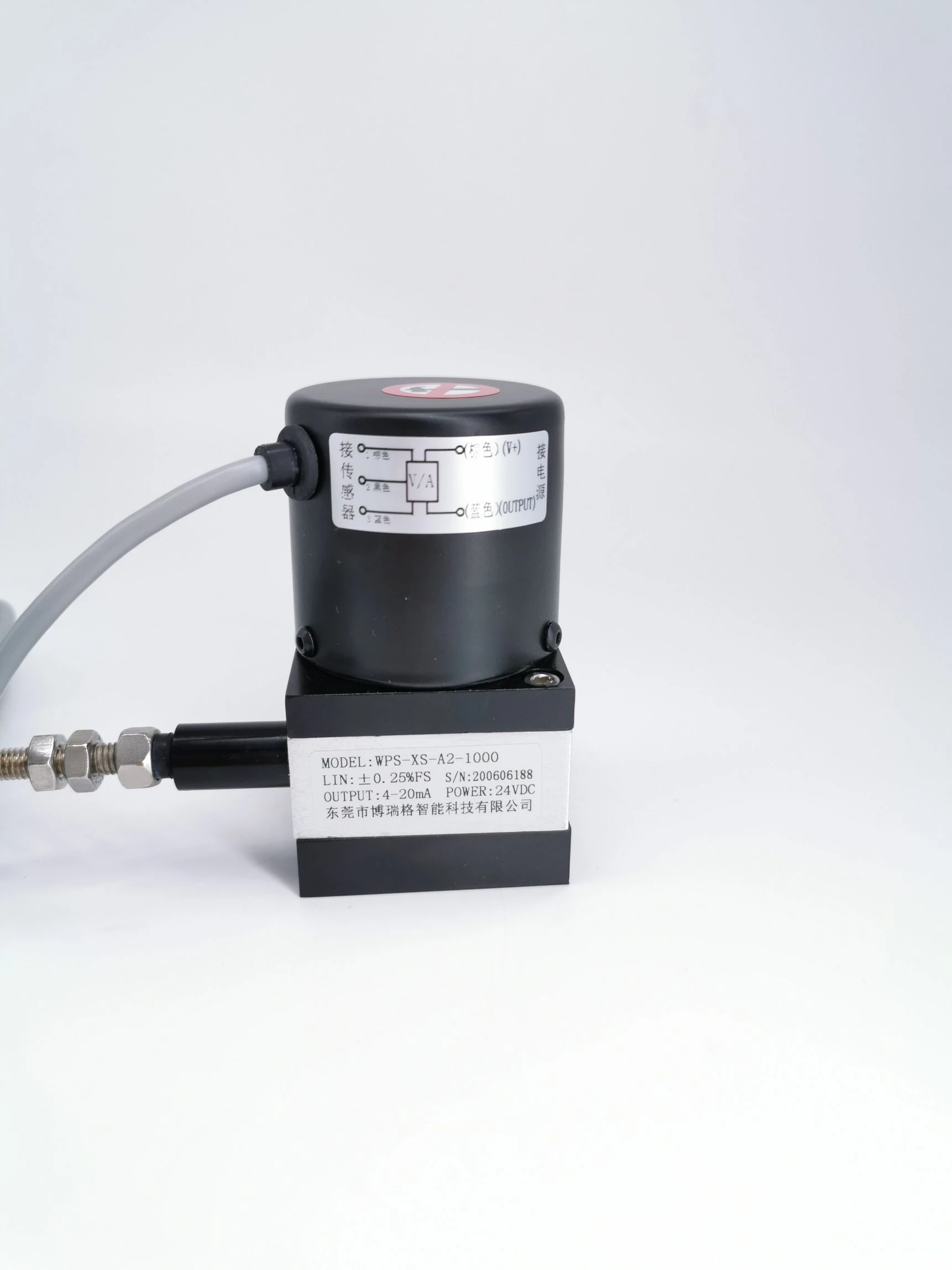

Pull Rope Displacement Sensor All-Metal High-Precision Position Measuring Sensor 0-1000MM
Application and characteristics
The draw wire sensor is a compact integration of the linear displacement sensor. It combines the advantages of angular displacement sensor, linear displacement sensor and gear and strip transmission. It is compact, versatile, easy to install and small in installation size. No need to compensate for gaps, sensors with high precision measurement, high repeatability measurement and high positioning accuracy, long stroke and long life.
The draw wire sensor, also known as draw wire encoder, or string potentiometer, or cable extension transducer, or rope encoder etc.
Technical parameter
Size | XS |
Theory | Potentiometer |
Output signal | 4-20mA,resistane , 0-5V,0-10V |
Operating Voltage | 24V |
Stroke | 1000 |
Precision grade | S(Standard measurement level) |
Linearity | ±0.05%FS - 0.15%FS |
Repeatability | 0.005%-0.01% |
Temperature range | -30 - 80ºC |
Pull | 250±50g |
Rope Diameter | 0.65mm |
Model | R |
Protection class | IP65 |
Max Mass | ≈300 |
Remark | >3600P |
