 Factory direct sales  3-axis CNC EDM machine toolOur factory is a Chinese EDM manufacturerWe have been engaged in EDM power supply research for 15 yearsWe continue to develop electric spark powerWe have patented EDM power technology

Featured Products

 Factory direct salesEDM Machine Tools Sold Directly by Chinese Manufacturers

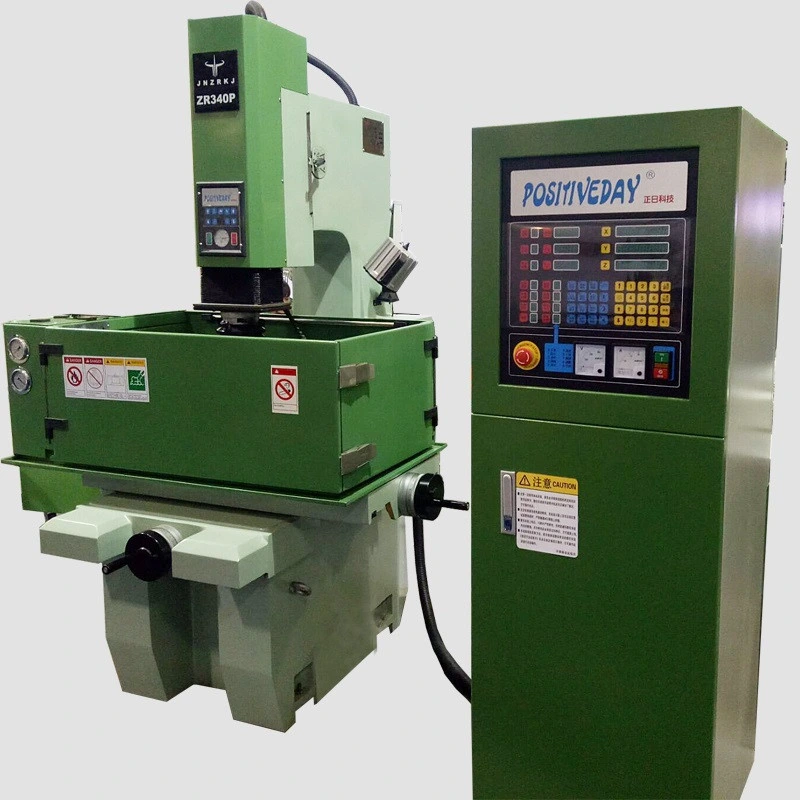

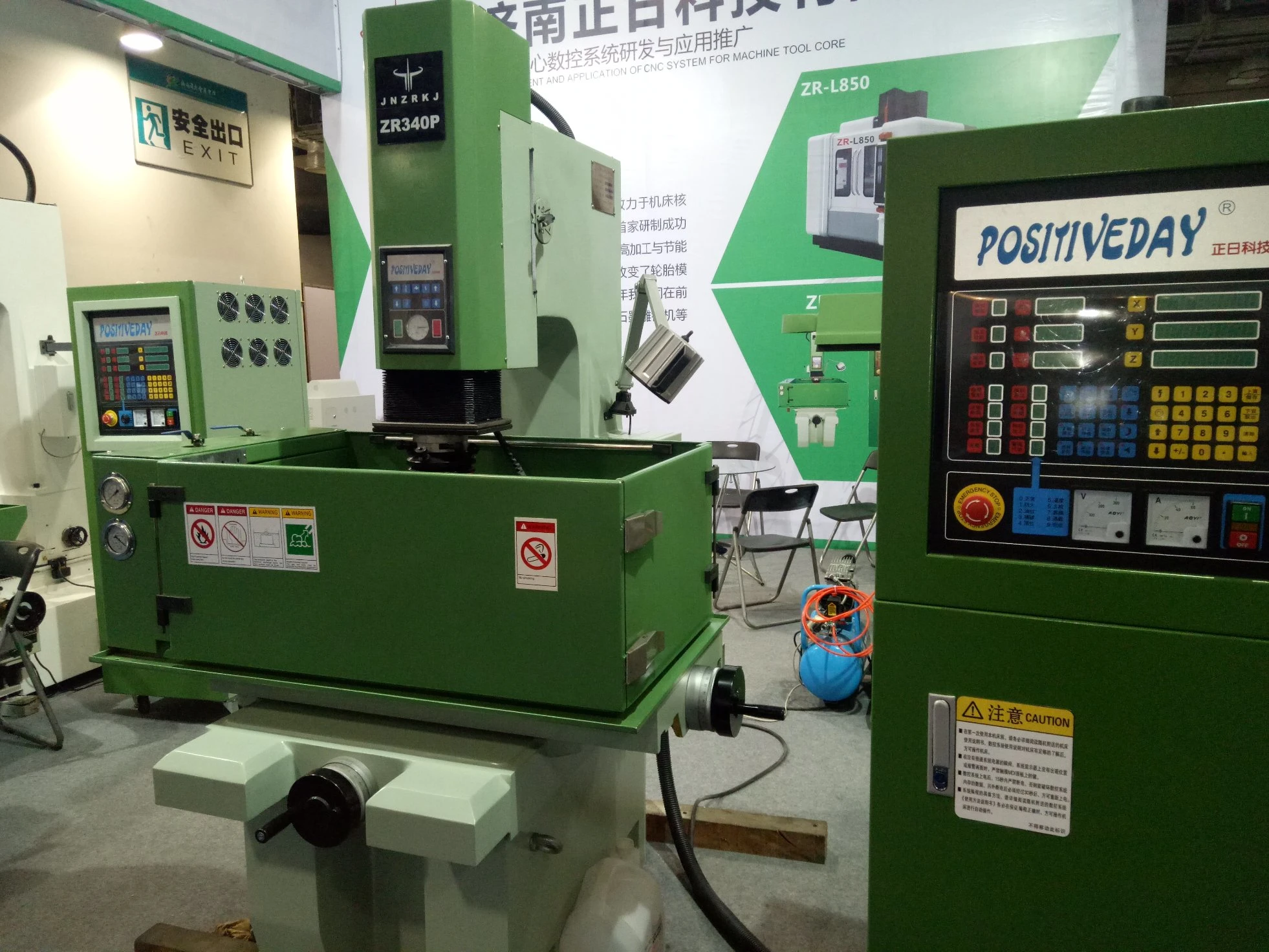

  3-axis CNC EDM machine tool

EDM Machine Tools Sold Directly by Chinese Manufacturers
EDM Machine Tools Sold Directly by Chinese Manufacturers




Our factory is a Chinese EDM manufacturer
We have been engaged in EDM power supply research for 15 years
We continue to develop electric spark power
We have patented EDM power technology


                         EDM power supply patent certificate

EDM Machine Tools Sold Directly by Chinese Manufacturers




Description

Electrical Discharge Machine(EDM), Die-sinking EDM, also called cavity type EDM or volume EDM, consists of an electrode and workpiece submerged in an insulating liquid such as, more typically, oil or, less frequently, other dielectric fluids. The electrode and workpiece are connected to a suitable power supply. The power supply generates an electrical potential between the two parts. As the electrode approaches the workpiece, dielectric breakdown occurs in the fluid, forming a plasma channel, and a small spark jumps.

These sparks usually strike one at a time because it is very unlikely that different locations in the inter-electrode space have the identical local electrical characteristics which would enable a spark to occur simultaneously in all such locations. These sparks happen in huge numbers at seemingly random locations between the electrode and the workpiece. As the base metal is eroded, and the spark gap subsequently increased, the electrode is lowered automatically by the machine so that the process can continue uninterrupted. Several hundred thousand sparks occur per second, with the actual duty cycle carefully controlled by the setup parameters. These controlling cycles are sometimes known as "on time" and "off time". The on time setting determines the length or duration of the spark. Hence, a longer on time produces a deeper cavity for that spark and all subsequent sparks for that cycle, creating a rougher finish on the workpiece. The reverse is true for a shorter on time. Off time is the period of time that one spark is replaced by another. A longer off time, for example, allows the flushing of dielectric fluid through a nozzle to clean out the eroded debris, thereby avoiding a short circuit. These settings can be maintained in microseconds. The typical part geometry is a complex 3D shape, often with small or odd shaped angles. Vertical, orbital, vectorial, directional, helical, conical, rotational, spin and indexing machining cycles are also used.



 EDM Machine Tools Sold Directly by Chinese Manufacturers




Main Features

  1. Complex shapes that would otherwise be difficult to produce with conventional cutting tools.
  2. Extremely hard material to very close tolerances.
  3. Very small work pieces where conventional cutting tools may damage the part from excess cutting tool pressure.
  4. There is no direct contact between tool and work piece. Therefore delicate sections and weak materials can be machined without any distortion.
  5. A good surface finish can be obtained.
  6. very fine holes can be drilled.



EDM Machine Tools Sold Directly by Chinese Manufacturers

  EDM Machine Tools Sold Directly by Chinese Manufacturers

EDM Machine Tools Sold Directly by Chinese Manufacturers



Specification

ItemsUnit340P
X Travelmm450
Y Travelmm350
Z Travelmm210
Cutting Accuracy"45
Max. Electrode Weight kg180
Max. Workpiece Weight kg1200
Max. Workpiecemm1030*650*500
Dielectric Fluid Reservoirmm900*500*350
Max.Electric CurrentA75
Power SupplyAC200V-440V
Input Power KVA6
Min. ON TIMEμs1
Min. OFF TIME μs1
Max. Working Speed mm/min420
Best Surface PrecisionμmRa0.02
Min. Electrode Wear Rate %<0.3
Machine Unit Dimensions (W x D x H)mm1400*1000*425
Machine Unit WeightKg1500
