Item Spec:
1. Operating Voltage: 3-10V DC
2. Source Voltage: 0.3-1.5V
3. Signal Output: MIN 2.5Vp-p
4. Noise Output: MAX mVp-p
5. Balance Output: MAX 15%
Product Description

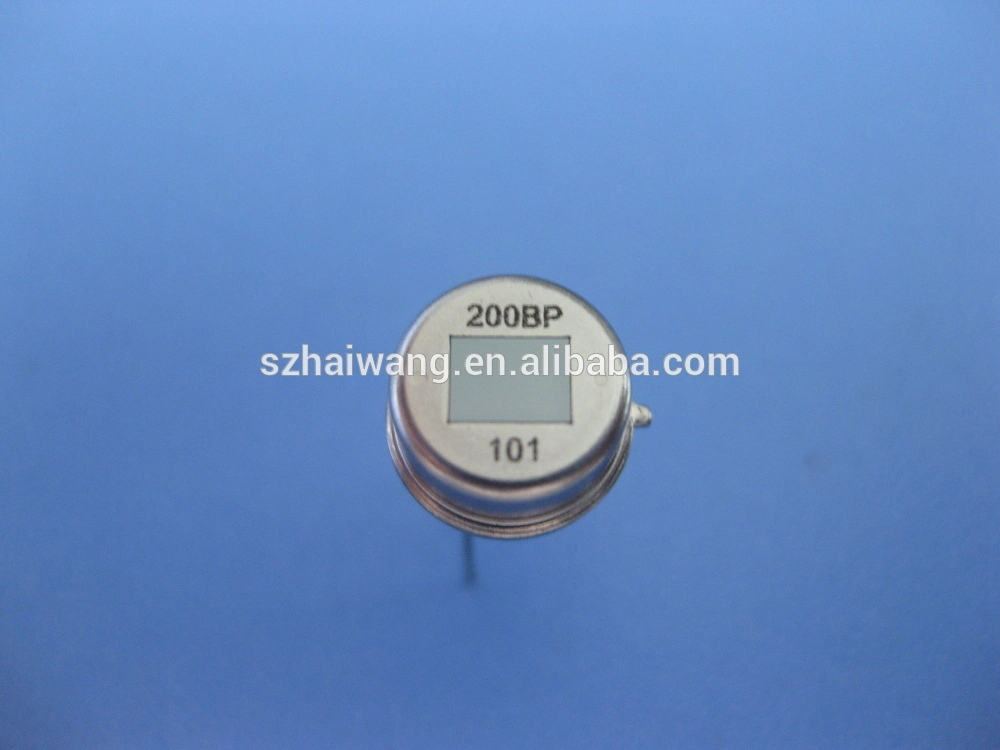

The pyroelectric infrared sensor detects infrared radiation on the basis of the characteristics that the polarization of pyroelectric material changes with temperature. Dual compensated sensing elements are applied to suppress the interference resulting from temperature variation. As a result, the operating stability of the sensor is greatly improved Our products can be used in many applications.
Parameter:
| IR Receiving Electrode | 2*1mm, 2elements |
| Window Size | 3*4mm |
| Spectral Response | 5-14um |
| Transmittance | > 75% |
| Output Signal[Vp-p] | > 3300mV |
| Detectivity (D*) | 1.4*108 cmHz1/2/W |
| Noise[Vp-p]: | 70mV |
| Output Balance: | 10% |
| Offset Voltage: | 0.3-1.2V |
| Supply Voltage | 3-15V |
Operating Temp: -30-70Celsius degree
Storage Temp: -40-80Celsius degree
Applications:
1. Security systems
2. Burglar alarms
3. Visitor acknowledgement
4. Light switch control
5. Intellectualized toy
Feature:
1. High sensitivity
2. Long detecting distance
3. Wide angle
4. Strong stability
5. Wide application fields
Our Service:
1.OEM and ODM are welcome.
2.Small quantity order is welcome.
3.Sample lead time: 1-3 days
4. Your inquiry for our products will be replied in 10 hours.
About Us
HaiWang is dedicated to design and manufacture electronic components, PIR sensor&lens, IC, sensor module, LDR/CDS and OEM products like LED bike light, driver wake up alarm, personal alarm, card magnifier and so on. Our business area covers United States, Europe, Latin America, Africa and Southeast Asia. We have won good reputation from our customers for 12 years. If you are interested in our products, warmly welcome to contact us.
Welcome to ask for inquiry or for data sheet.Camille will be happy to service for you.
